Multi Energy CT Quality Assurance Phantom

Co-developed with:
Katsuhiro Ichikawa, Ph.D.,
Institute of Medical, Pharmaceutical and Health Sciences,
Kanazawa University, Japan


Water Equivalent Material, various inserts and empty bottles enable to verify the appropriate Multi-Energy CT settings

OVERVIEW

Multi-Energy CT (MECT) or Dual Energy CT (DECT) is a new frontier of rapidly advancing medical imaging, and now entering clinical practices in hospitals.
The technology enables material differentiation, elemental decomposition and material quantification.
Such features are expected to bring us better diagnosis, improved image quality, reduction of radiation exposure, reduction of contrast agent volume and opens possibility of functional imaging.

Meanwhile, further studies are awaited in various field such as quality management of CT equipment, verification of protocols, expansion of clinical application, to derive the maximum benefits from the technology.

Kyoto Kagaku supports researchers and clinicians with up-to-date innovative phantoms.


Applications

Study for

  • ME-CT image analysis protocol
  • Metal artifact reduction
  • Reduction of contrast media

Evaluation Parameters

  • Uniformity
  • Signal-to-noise ratio (SNR)
  • Image contrast
  • CT dose index (CTDI)

FEATURES


  • Phantom using innovative Aqua Slab (Water Equivalent Material)
  • CTDI measurement
  • Metal artifact reduction
  • Two different sizes of body (TR-I, TR-J)



Empty bottles enable to put various items and check how they react to Multi Energy CT

e.g. animal organ / metal / tumor

Aqua Slab

About Aqua Slab (Water Equivalent Material)

Aqua Slab has high equivalency to water in diagnostic energy ranges(40-190KeV)

Co-developed with;Professor Ichikawa Katsuhiro,
Faculty of Health Sciences, Institute of Medical,
Pharmaceutical and Health Sciences,
Kanazawa University, Japan



Experiment

  1. Methods: Place the materials inserts on water tank
    (Materials: Aqua Slab / soft tissue / tough water / polyurethane / adipose tissue)
  2. CT images: Rods are not shown in the CT images
    • (above) Aqua Slab: Nine rods of WEM are "invisible" under CT
    • (below) conventional materials: Two rods of Aqua Slab and for conventional water, adipose and soft tissue equivalent material, and polyurethane

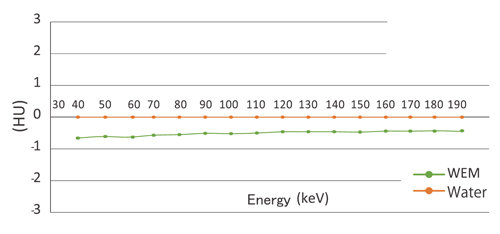

  3. Result: Aqua Slab has high equivalency to water

Supports iodine quantification and materialde composition

Unlike conventional "water substitute" materials the Water Equivalent Material maintain water equivalency under low energy range. This feature support studies that involve iodine quantification.

Save time and trouble for study and expand possibilities

Save time, costs and efforts to design and produce custom acrylic water phantoms.
Unlike water phantoms, phantoms with solid materials reduce the troublesome process to change water and inside rods.

photo Ryota Matsui, Ishikawa Katsuhiro, Hiroki Kawashima, "Development of highly precise Water Equivalent phantom for CT machine" Ichikawa Lab, Kanazawa Univ. http://ichiken.w3.kanazawa-u.ac.jp/img/file2.pdf (cited 2019-05-20)

Descriptions

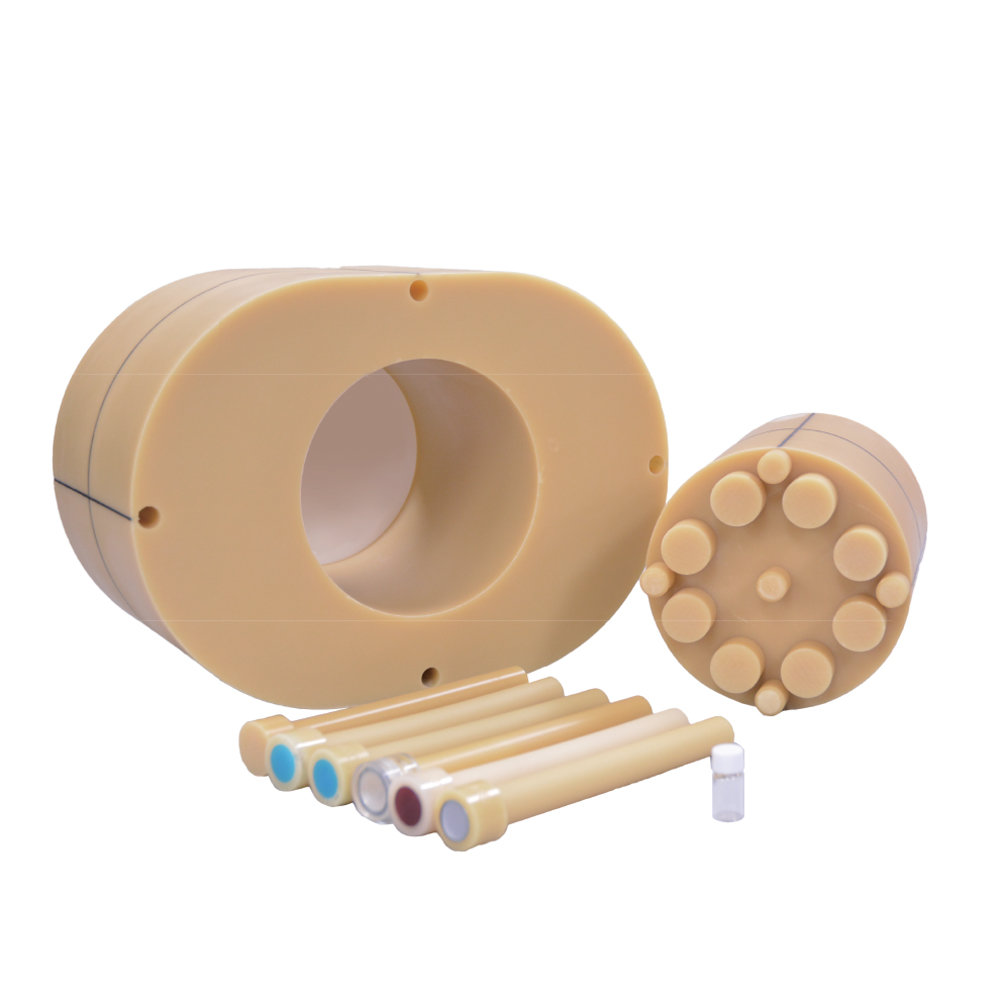

photo TR-I (PH-75B 41941-100)

photo TR-J (PH-75A 41941-000)

Inserts

[Color: Name / Size / Qty]

  • Water Equivalent Material (Aqua Slab) / dia.20mm / 8
  • Silver: Titanium / dia. 12mm / 1
  • Red: Soft tissue (equivalent to liver) / dia. 20mm / 1
  • Blue: Iodine concentration 4mgl/mL / dia. 20mm / 1
  • Blue: Iodine concentration 8mgl/mL / dia. 20mm / 1
  • Blue: Iodine concentration 12mgl/mL / dia. 20mm / 1
  • Transparent: Water container / dia. 20mm / 1
  • Empty bottle with spacer *for experiment / 20

Iodine concentrations can be custom-ordered.
