PH-2

Whole Body Phantom "PBU-50"

Start

41350-000 storage case excl. Quote
41350-100 with storage cases Quote

An essential asset for every radiography program

Features 1. Radiology absorption and HU number approximate to human
body.
2. Main joints have close-to human articulation
3. Phantom can be disassembled into 10 individual parts

Training skills / Applications Plain X-ray / Basic patient positioning / Basic CT

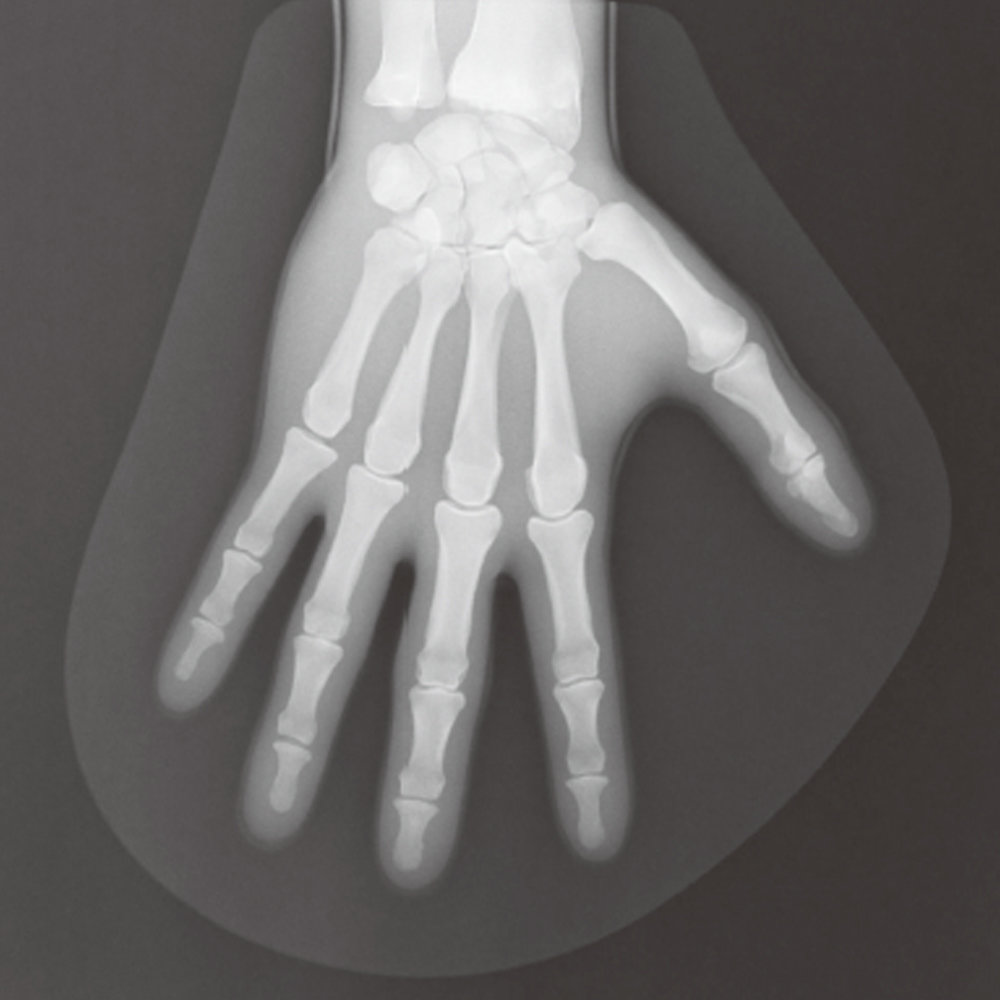

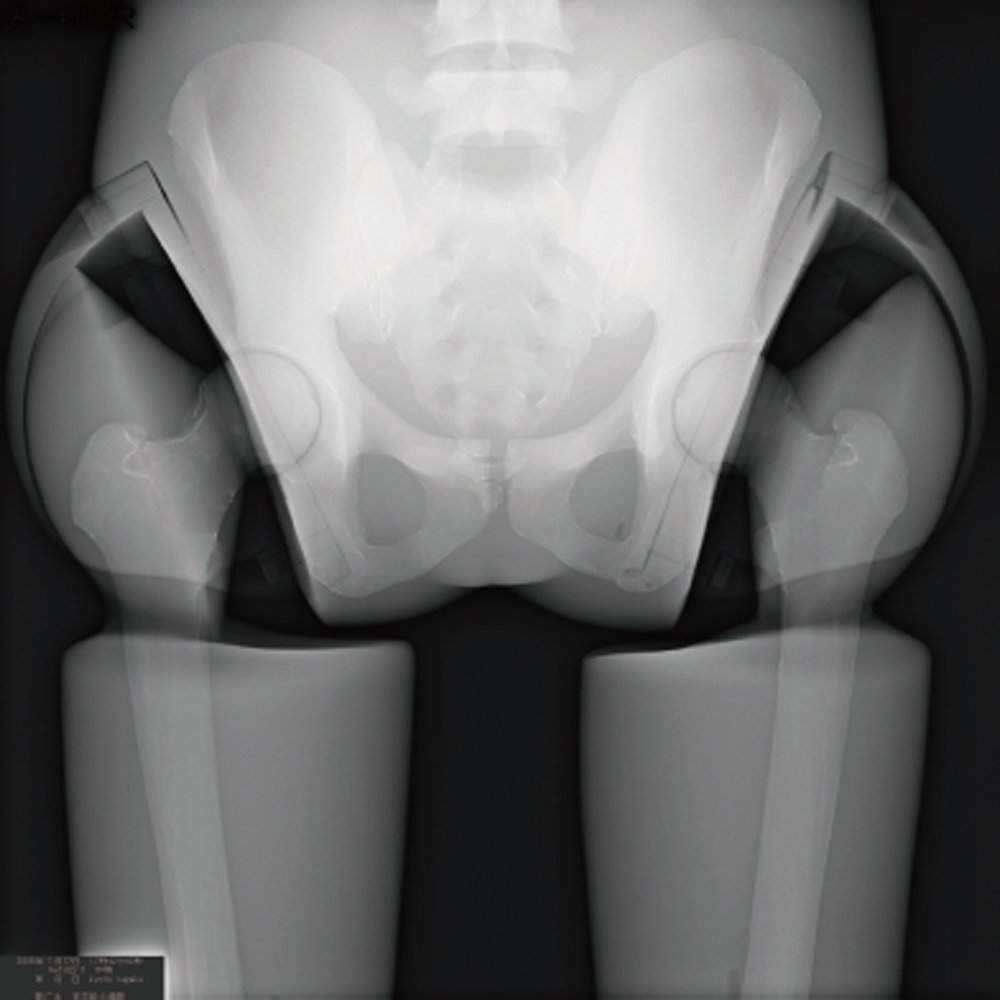

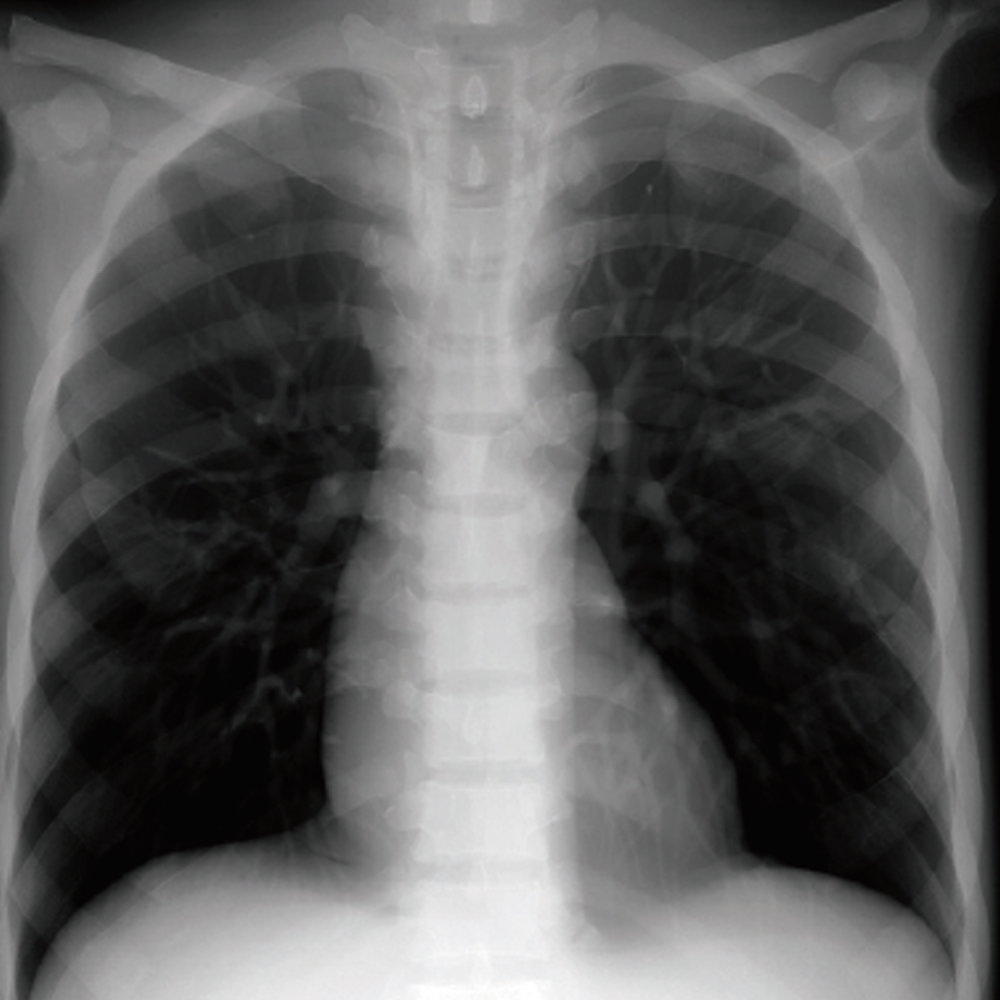

Set includes 1 whole body phantom / 1 head supporter / 1 flat head screwdriver/ 1 set of samaple X-ray / manual
Height (approx.) 165 cm /65in
Packing size (approx.) W92 x D57 x H38cm, W37 x D23 x H15in / W90 x D63 x H22cm, W36 x D25 x H9in / W89 x D57 x H16cm, W35 x D23 x H6in
Weight (approx.) 50 kg / 110 lb
Packing weight (approx.) 80 kg / 176 lb
Materials Soft tissue: urethane based resin (specific gravity: 1.06)
Synthetic bone: epoxy resin (specific gravity: 1.31)
*Phantom has no metal parts or liquid structure
Replacement parts 41350-000-01 head for PH-2 / 41350-200-02 right hand for PH-2&2B / 45350-200-03 left hand PH-2&2B  / 41350-200-04 right upper arm for PH-2&2B / 41350-200-05 left upper arm for PH2&2B / 41350-000-06 torso for PH-2 / 41350-200-12 right thigh for PH2&2B /41350-200-13 left thigh for PH2&2B / 41350-200-14 right foot for PH2&2B / 41350-200-15 left foot for PH2&2B
Optional parts 41363-070 storage cases (consist of 2 boxes) / 41350-200-16  body plates for PH-2/2B (BMI 32) / 41350-200-17  body plates for PH-2/2B (BMI 40)
Anatomy skull / spine / clavicles / scapulae / ribs / sternum / coxal bones / lungs with pulmonary vessels / trachea
(up to primary bronchi) / heart / liver with portal and hepatic veins / kidneys / humerus / antebrachial bone
/ bones of hand / femur / patella / lower leg bone / bones of foot
Update July 28, 2020
