Improve skills in detecting bone fractures in children and cultivate awareness of child maltreatment.
- pediatric abuse
PH-2D

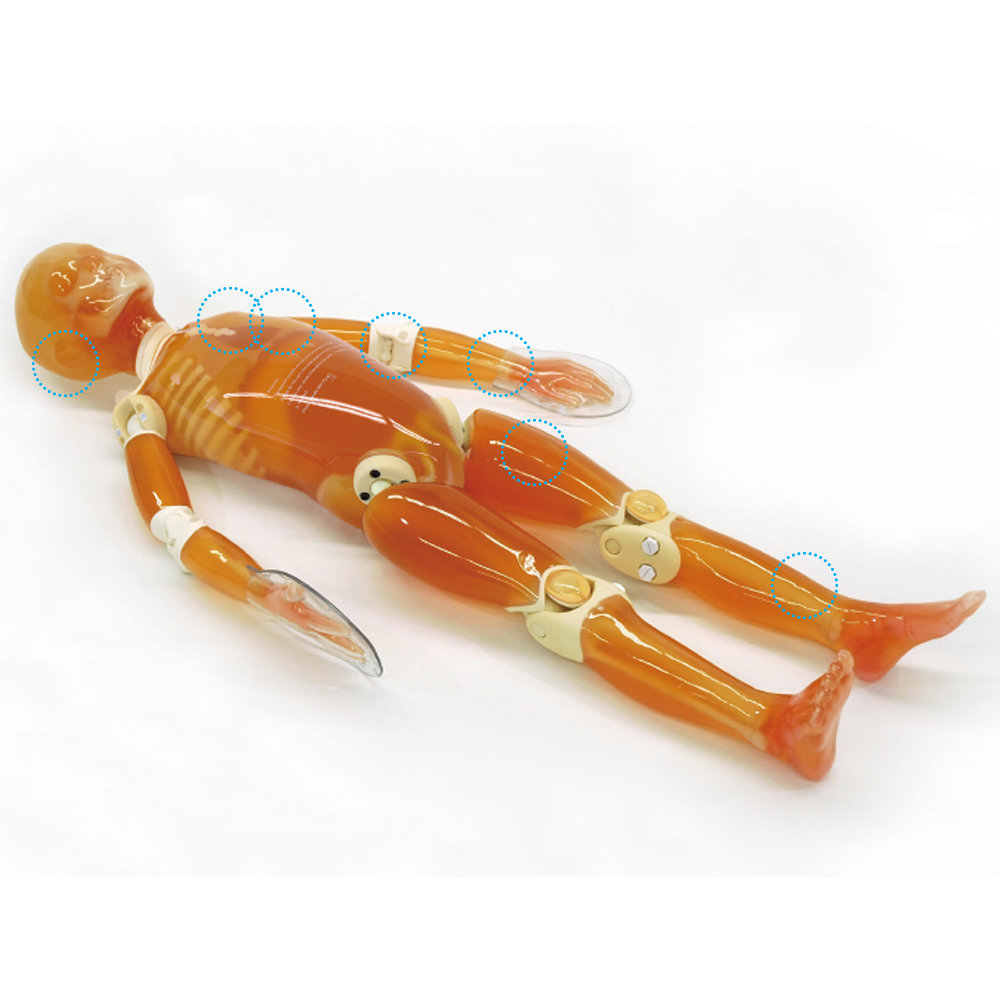

Bone Fracture Pediatric Phantom "PBU-70B"
| Features | 1. Training in pediatric radiography can be enriched with clear and subtle bone fractures 2.Typical fractures resulting from child abuse are also included |
|---|---|
| Training skills / Applications | Plain X-ray CT Basic patient positioning |

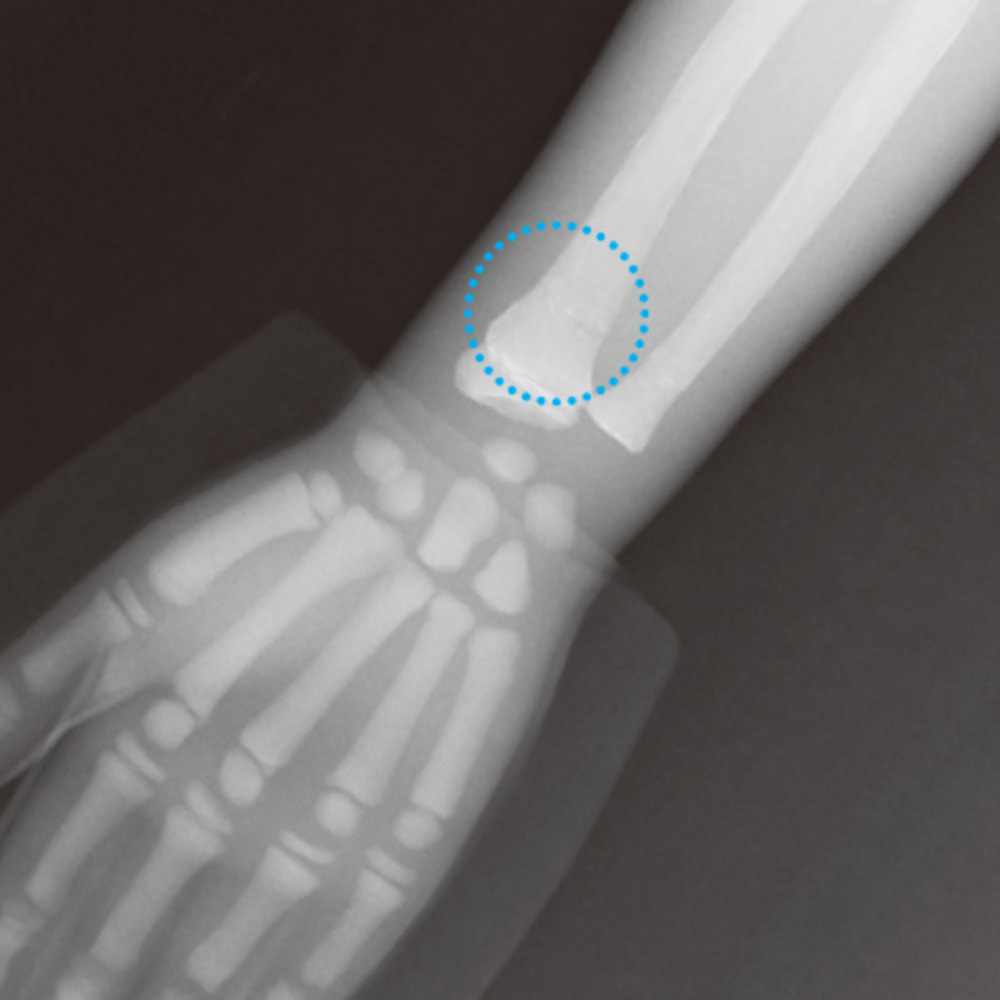

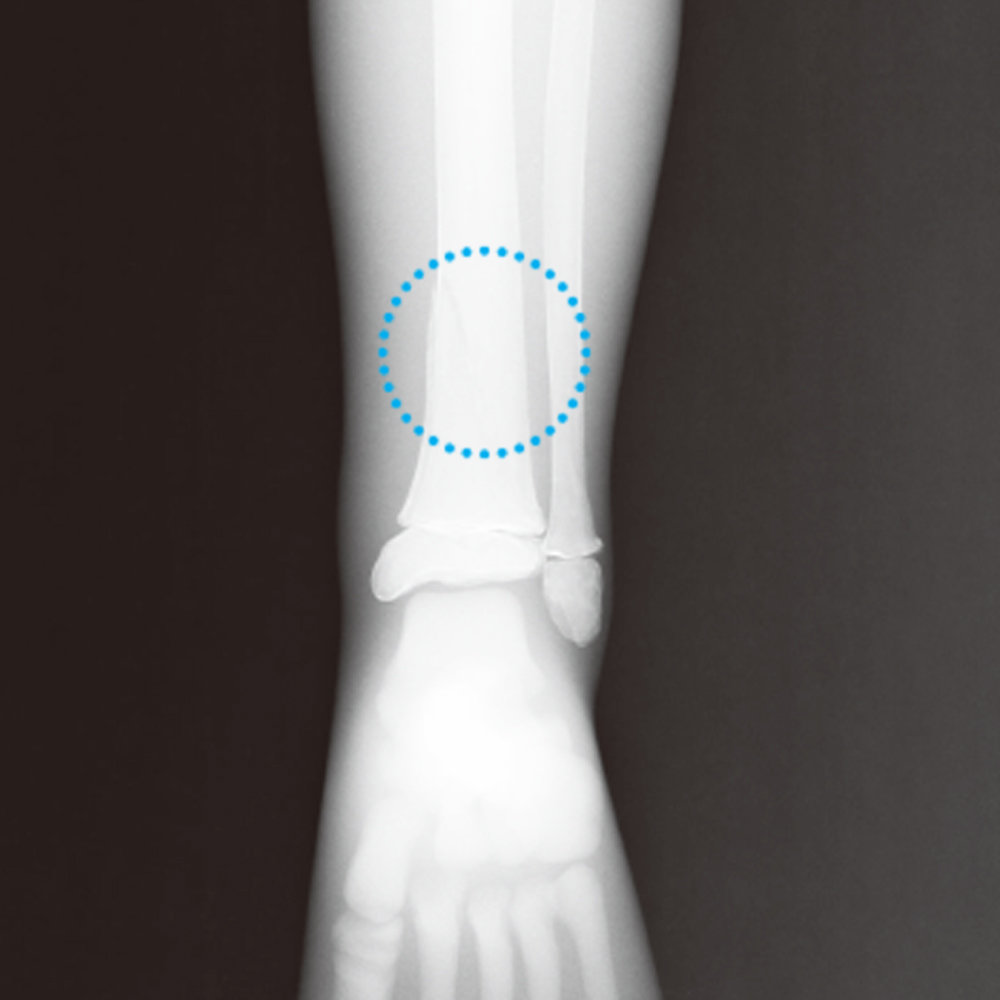

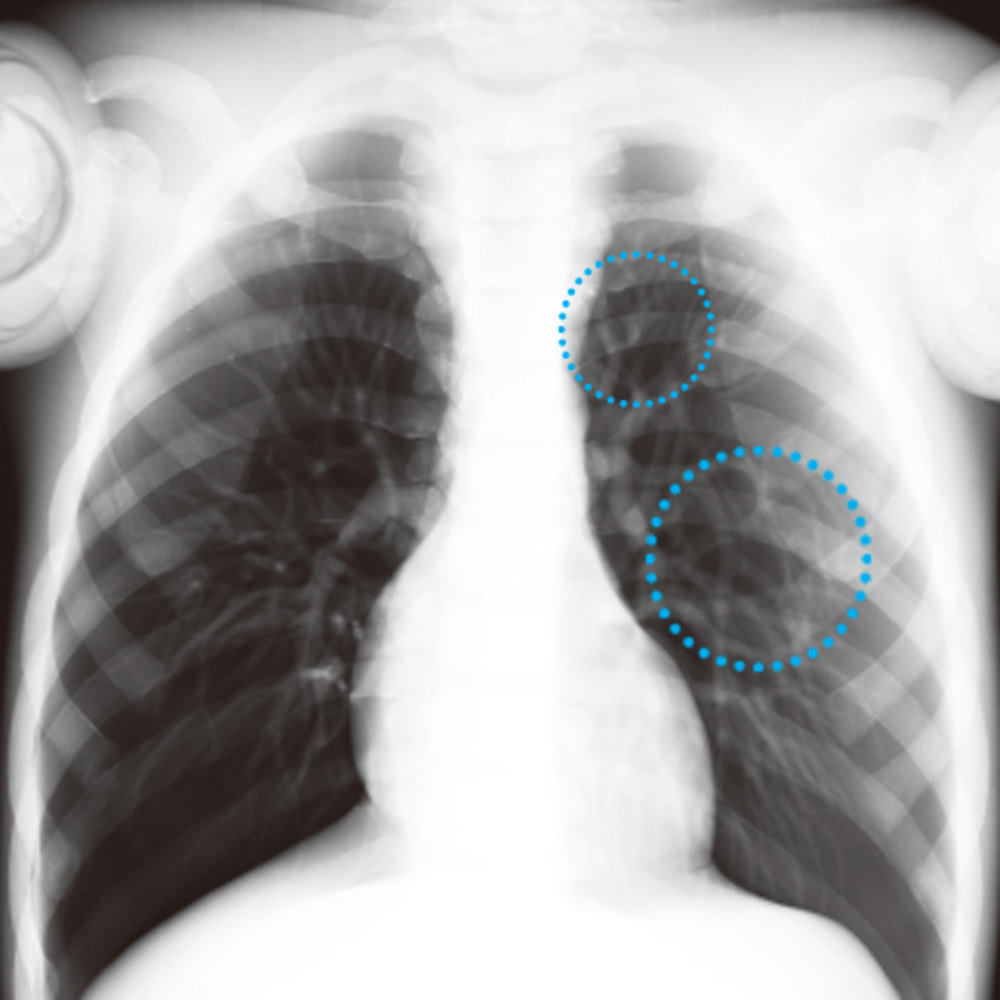

| Case / Pathology | Signs of callus / Supracondylar humerus fracture / Back, scapula and rib fractures/ Skull fractures |
| Set includes | 1 pediatric whole body phantom / 1 head supporter / 1 hand fixture belt / 1 screw driver / 1 set of sample X-ray data(DVD) / manual |
| Height (approx.) | 110 cm / 43.3 in |
| Packing size (approx.) | W86 x D60 x H32cm / W33.9 x D23.6 x H12.6in |
| Weight (approx.) | 20kg / 44lb |
| Packing weight (approx.) | 25kg/ 55lb (41350-500), 44kg /97lb (41350-600) |
| Materials | Soft tissue: urethane based resin (density: 1.06) / Synthetic bone: epoxy resin (density: 1.31) / Skull: epoxy resin (density:1.11) *Phantom has no metal parts or liquid structure |
| Replacement parts | 41350-500-01 head for PH-2D / 41350-500-02 left hand for PH-2D / 41350-500-03 left upper arm for PH-2D / 41350-500-04 torso for PH-2D / 41350-500-05 lest thigh for PH-2D / 41350-500-06 left lower thigh-foot for PH-2D |
| Optional parts | 41363-080 storage case |
| Related products |
41350-300 PH-2C Pediatric Whole Body Phantom "PBU-70"
41912-100 PH-50 Newborn Whole Body Phantom " PBU-80" 41337-300 Pediatric Chest Phantom 41350-000-11 Fractured Hand / Forarm Phantom |
| Update | July 28, 2020 |
