US-5

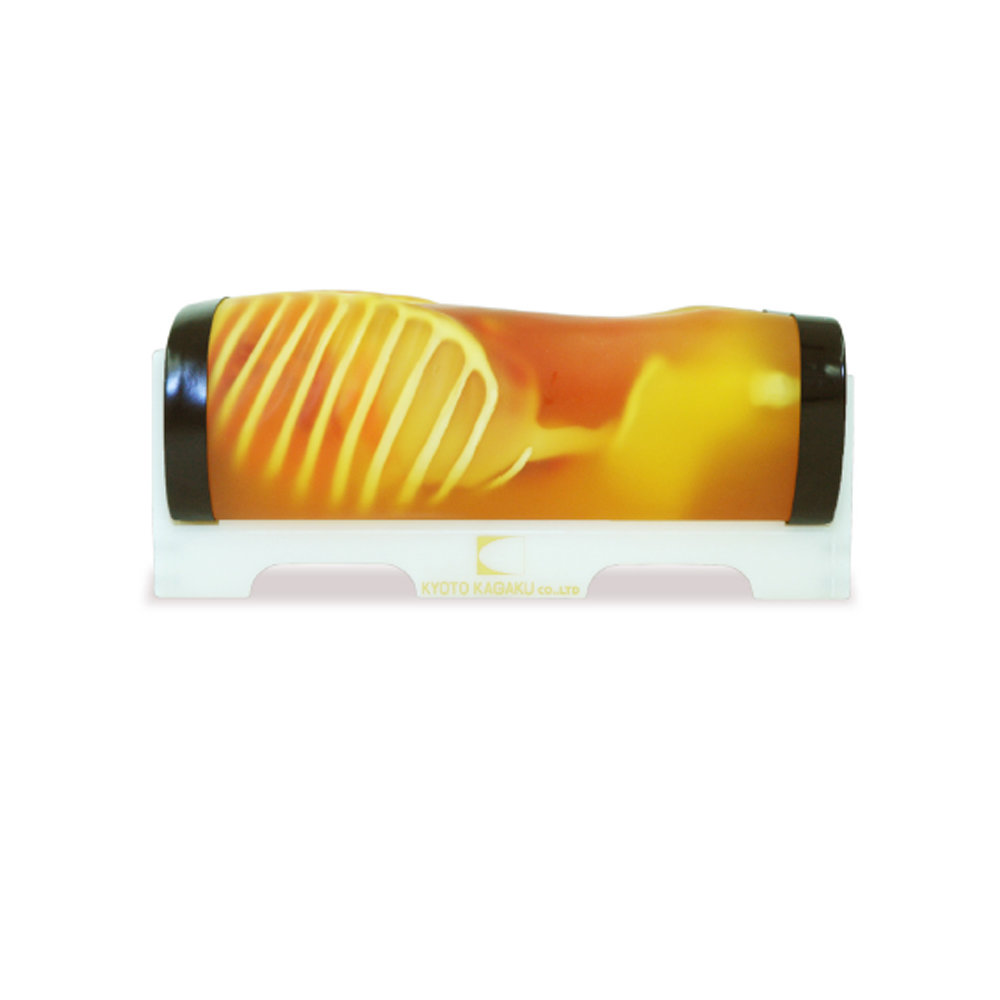

FAST/Acute Abdomen Phantom "FAST/ER FAN"
| Features | 1. An innovative phantom for repetitive training of FAST as an adjunct to the ATLS primary survey/ 2. Pathologies include cholecystitis, an aortic aneurysm and a lesion on the colon. |
|---|---|
| Training skills / Applications | Internal hemorrhage at perihepatic, perisplenic,pelvis and pericardium area/ Sonography for acute patients |

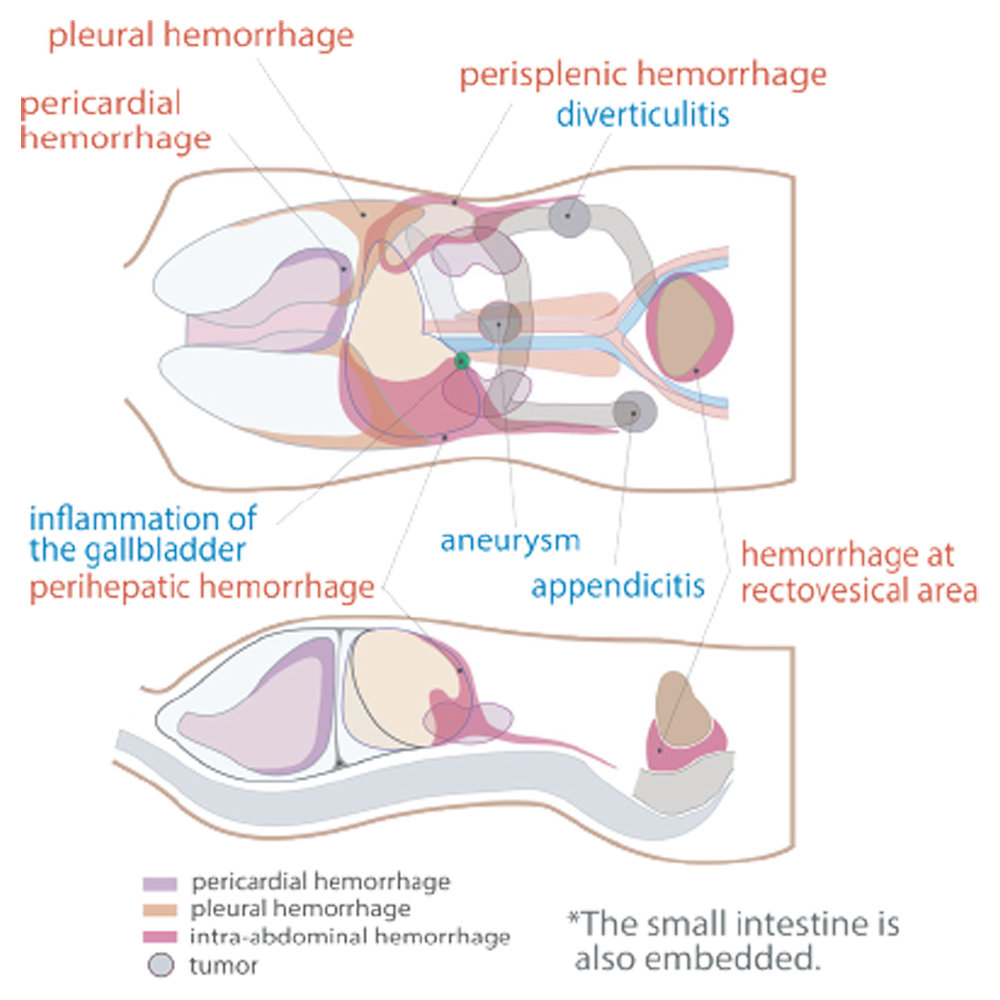

| Case / Pathology | 1.FAST/ Cardiac Tamponade, Right Upper Abdominal Bleeding, Perisplenic Hemorrhage, emorrhage at Rectovesical Area/ 2.Acute abdomen/Inflammation of the Gallbladder, Aneurysm, Appendicitis, Diverticulitis |
| Set includes | 1 ultrasound phantom with carrying base/ 1 tutorial manual (DVD) |
| Size (approx.) | W62 x D30 x H24 cm (W24.4 x D11.8 x H9.4 in) |
| Packing size (approx.) | W81x D47x H35cm/W32x D18.5x H14in |
| Weight (approx.) | 30kg / 66lb |
| Packing weight (approx.) | 36kg/79lb |
| Materials | Polyurethane elastomer Latex free |
| Related products |
US-8_Pediatric FAST/Acute Abdomen Phantom
|
| Production ＆ Development Supervision | Junji Machi, MD, PhD/University of Hawaii at Manoa and Kuakini Medical Center |
| Anatomy | Lung/Heart/Diaphram/Liver/Kidney/Spleen/Pancreas/Colon/Bladder/Rectum/Vena cava/Aorta/Sacrum |
| Update | August 18, 2020 |
