Ensure highly detailed images for reliable breast cancer examinations
US-4

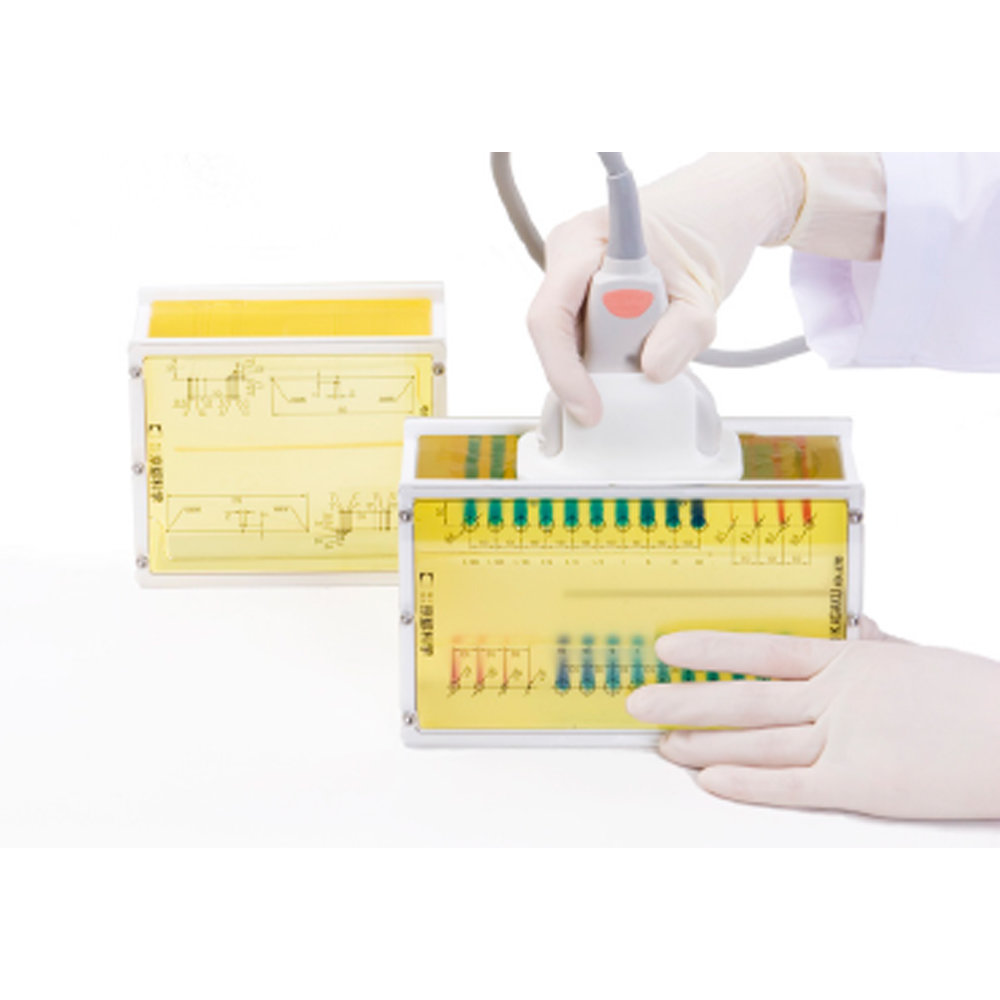

Breast Ultrasound QA Phantom
| Features | 1. Ultrasound QA phantom for high precision imaging in the high frequency sonography around 10 MHz that is required in breast examination 2. For monthly basic quality check of ultrasound images, as well as longer term quality assurance to maintain consistency of the performance of scanners and transducers. |
|---|---|
| Training skills / Applications | 1. Contrast resolution/ 2. Spatial resolution |

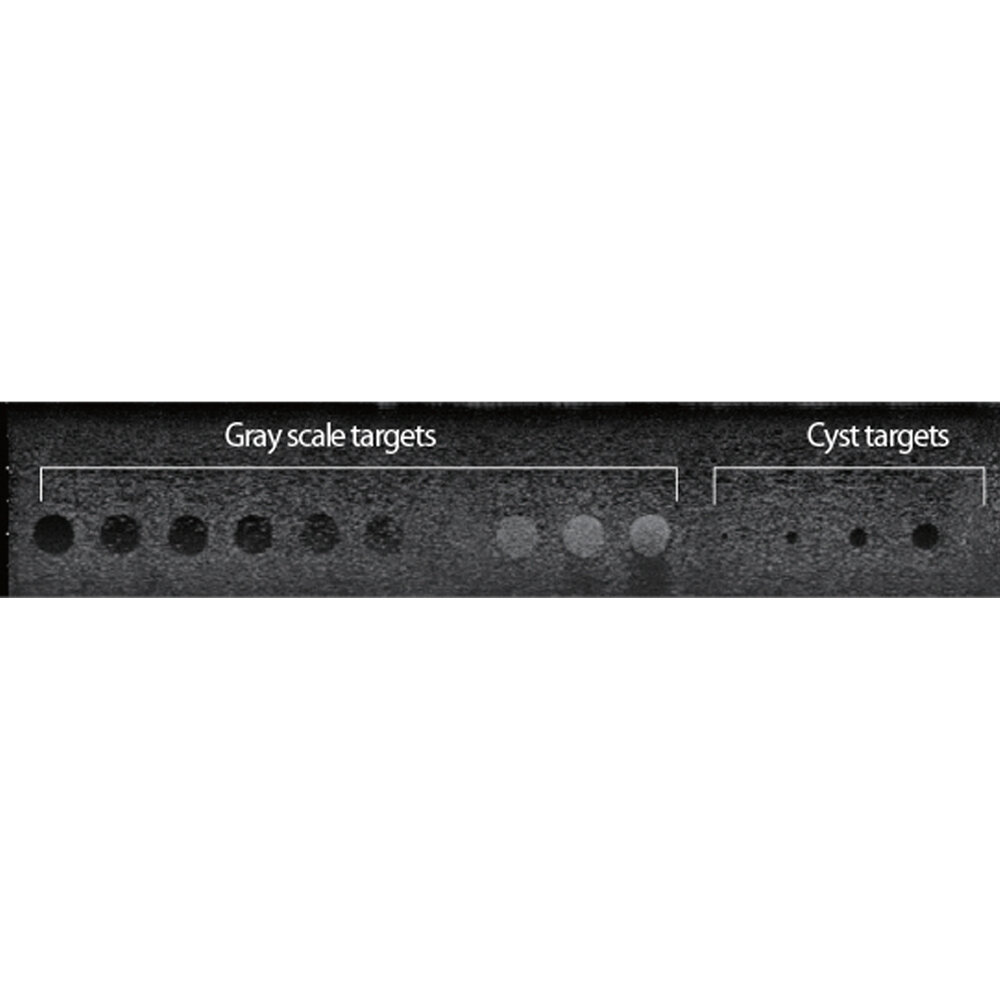

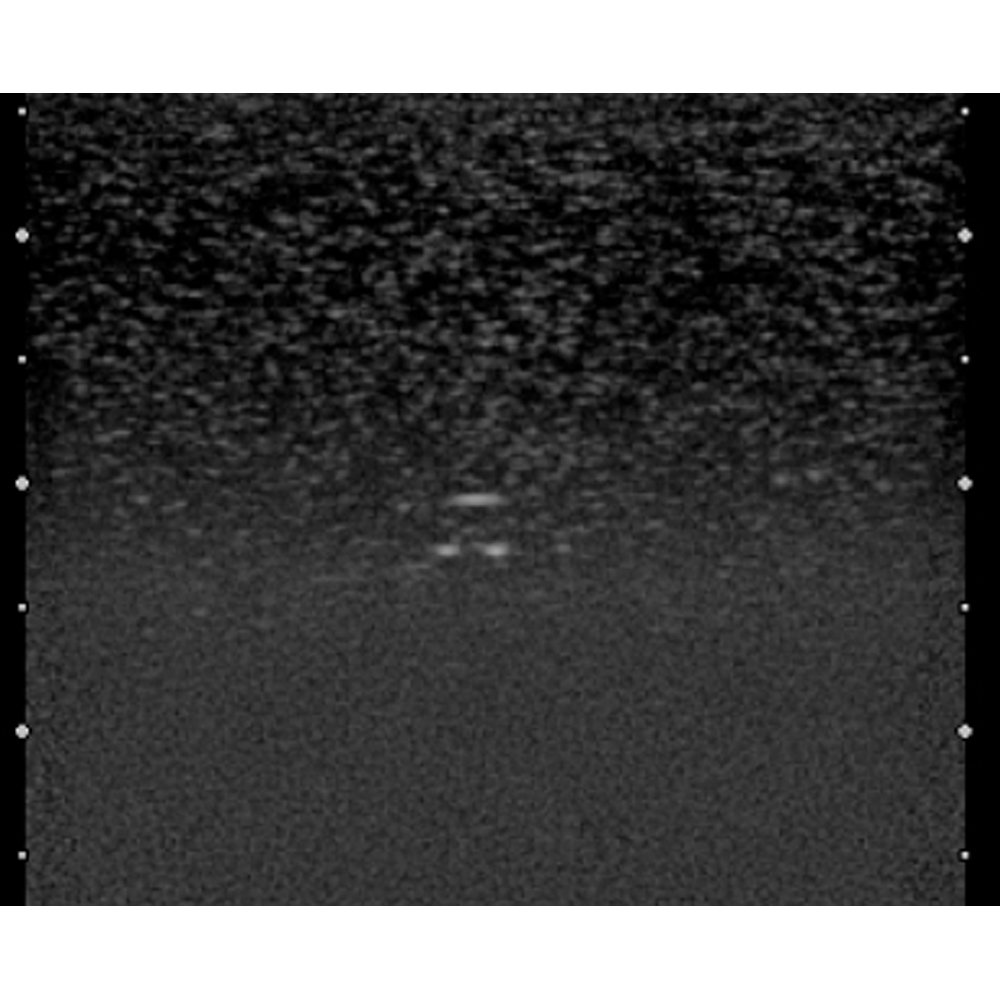

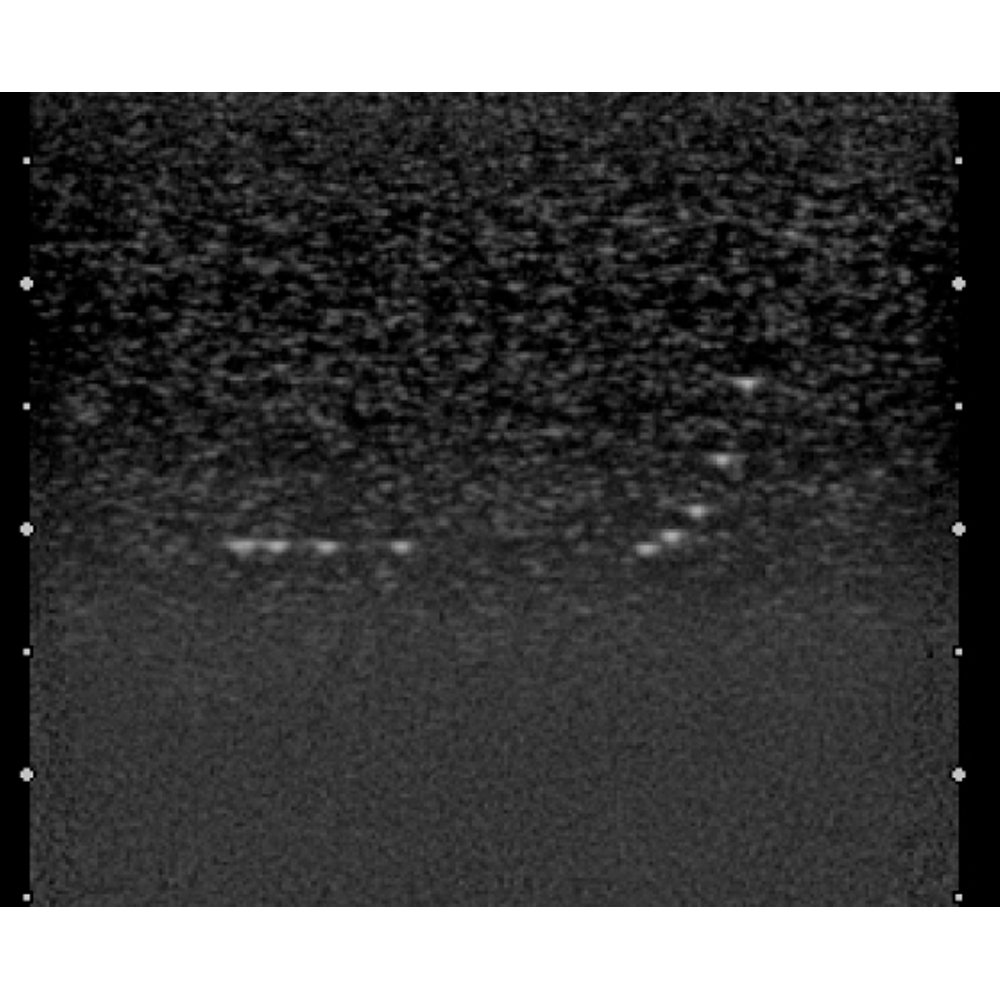

| Case / Pathology | Mass targets block/ Gray scale targets, Cyst targets / Dot targets block/ Dot targets, 45 degree tilted line targets |
| Set includes | 1 mass targets block, 1 dot tagets block, 1 thermometer, 1 strage case, 1 instruction manual |
| Size (approx.) | Mass:18 x 7.5 x 11cm/7.2 x 3 x 4.4in Dot:13.5 x 7.5 x 11cm/5.4 x 3 x 4.4in |
| Packing size (approx.) | W53x D32x H30cm/W21x D12.5x H12in |
| Weight (approx.) | Mass 1.3kg / 2.7lbs, Dot 1.0kg / 2.2lbs |
| Packing weight (approx.) | 5kg/11lb |
| Materials | Urethane elastomer, acryl, nylon Latex free |
| Related products |
US-2_Ultrasound QA Phantom (Multi Purpose Phantom N-365)
US-6 Breast Ultrasound Examination Phantom "BREAST FAN" US-9 Ultrasound-Guided Breast Biopsy Phantom US-4B Small Parts Basic QA Phantom |
| size | Mass targets block phantom size: 18 x 7.5 x 11 cm (7.2 x 3 x 4.4 in) Dot targets block phantom size: 13.5 x 7.5 x 11 cm (5.4 x 3 x 4.4 in) |
| Attenuation coefficient | Mass targets block: 0.59 dB/ cm MHz at 25℃Acoustic Dot targets block: 0.73 dB/cm MHz at 25℃ |
| Sonic velocity | Mass targets block: 1434 m/sec at 25℃ Dot targets block: 1442 m/sec at 25℃ |
| Update | August 4, 2020 |
