| 41955-000 | Basic set | Quote |
|---|---|---|
| 41955-100 | Full set | Quote |
Acquire skills to envision three-dimensional shapes from two-dimensional sections (echo images).
For the first step hands-on learning of ultrasound scanning.
- Ultrasound
- beginners
- Catalog Download
US-24

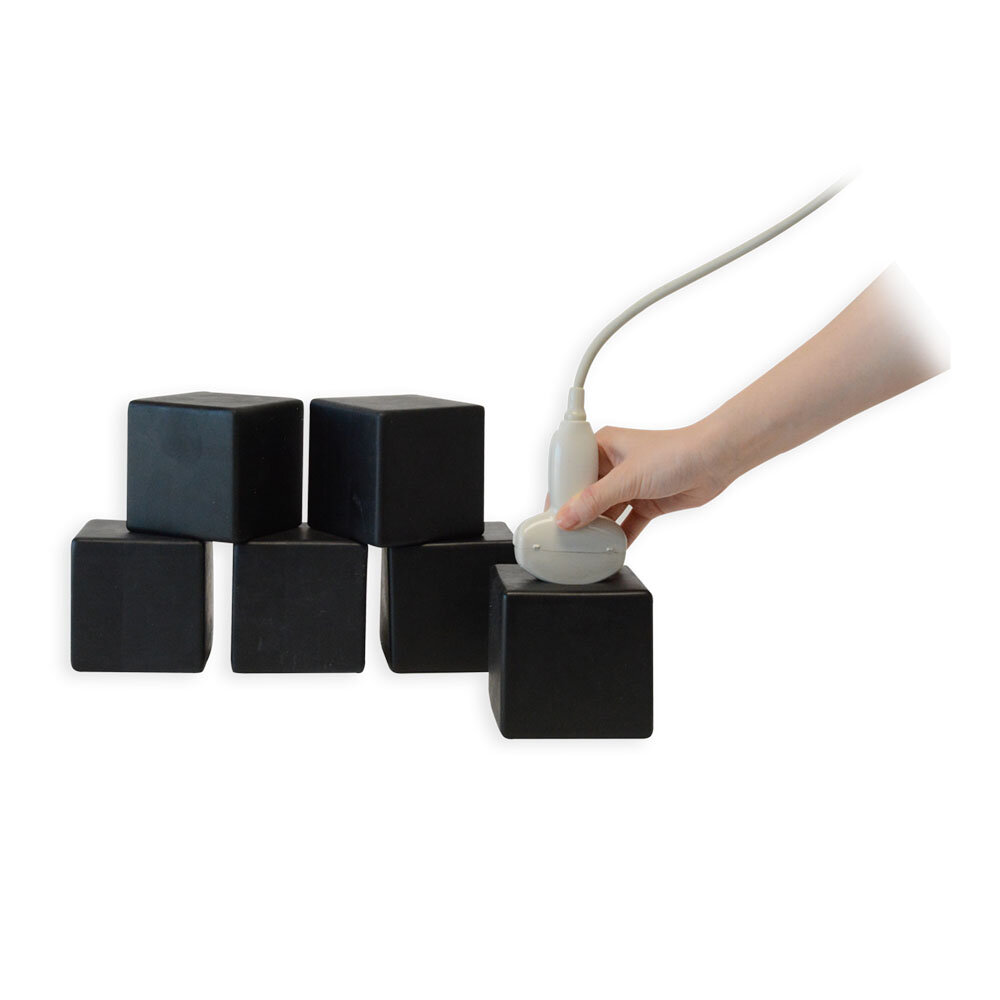

Elementary Cubic Phantom BLACKCUBE

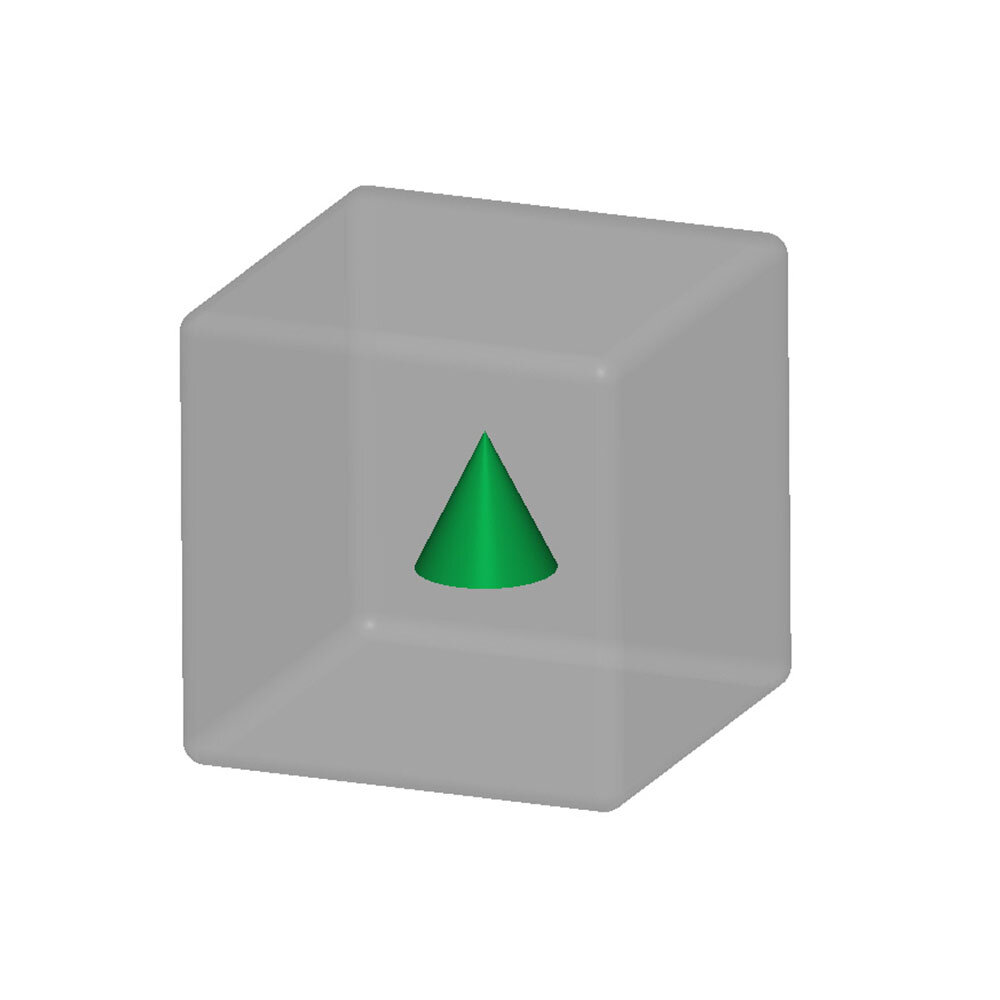

| Features | Each cube contains a geometrical three dimensional object, which is externally invisible. All six surfaces of the cube allow for scanning. Facilitates learning basics in grasping three-dimensional shapes with a ultrasound scanner. Combinations of different cubes allow for skills assessment as well as practical trainings. |
|---|---|

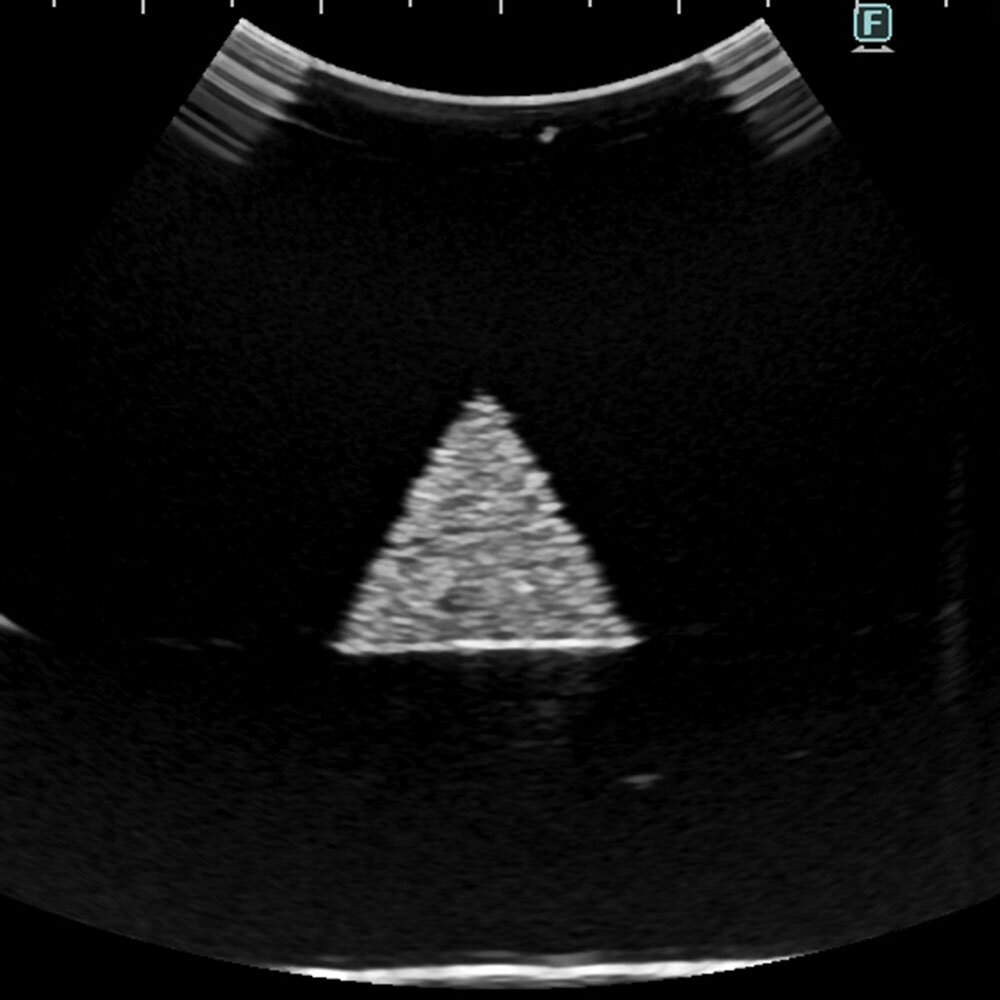

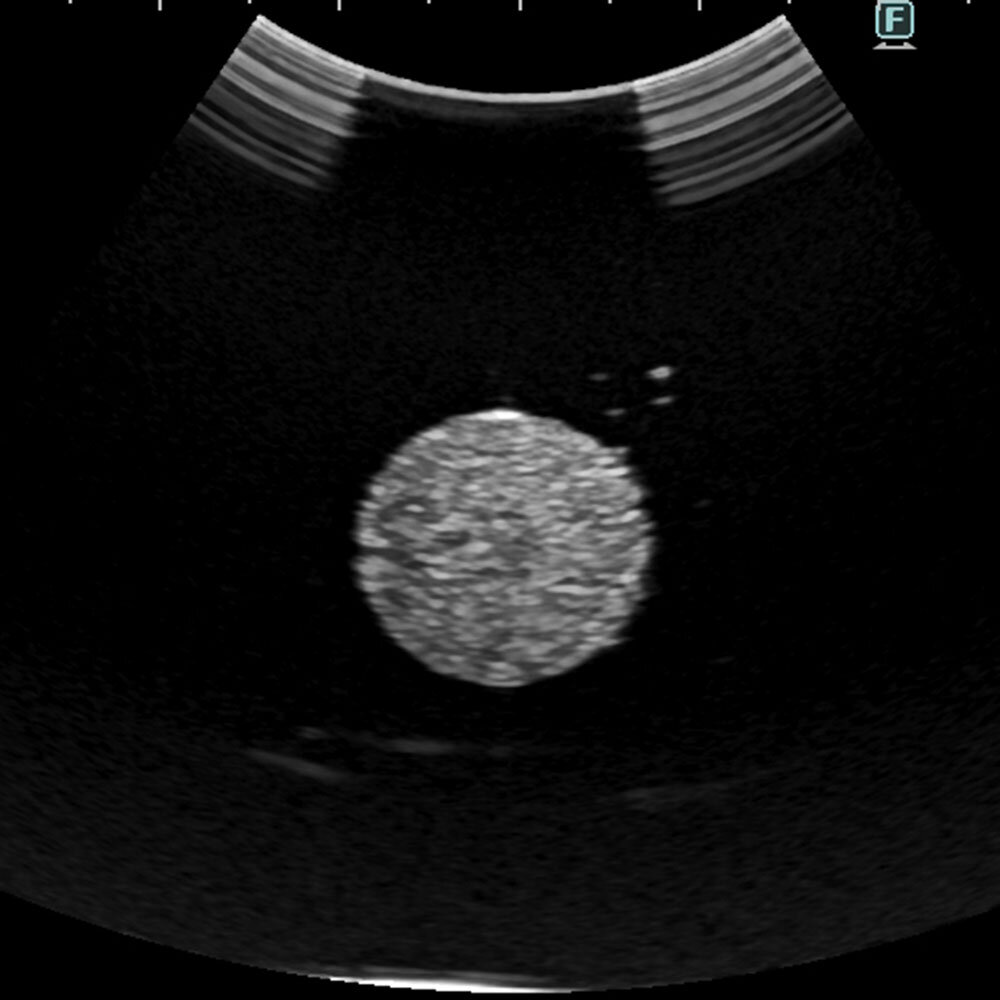

| Training skills / Applications | Visualization and measurement of geographical objects with a ultrasound scanner. Infer three dimensional shape based of 2-D ultrasound images from sic surfaces. |
| Set includes | cube phantoms (6 for basic set, 8 for full set) 1 talcum powder 1 storage case 1 work book 1 instruction manual |
| Size (approx.) | W10×D10×H10cm W3.9 x D3.9 x H3.9 cm |
| Weight (approx.) | 1.0 kg each |
| Production ＆ Development Supervision | Tadashi Kobayashi, M.D, Ph.D Graduate School of Medicine Endowed Course Development of Community Healthcare |
| Targets | Basic set (6 cubes) Sphere (large) Sphere (small) Double sphere Rugby ball shape Cylinder Cone Full set (8 cubes) Sphere (large) Sphere (small) Double sphere Rugby ball shape Cylinder Cone Triangular pyramid Star shaped prism |
| Update | March 18, 2024 |
