| 41900-100 | full set | Quote |
|---|---|---|
| 41900-030 | phantom only set | Quote |
Abdominal ultrasound phantom with pathologies
US-1B

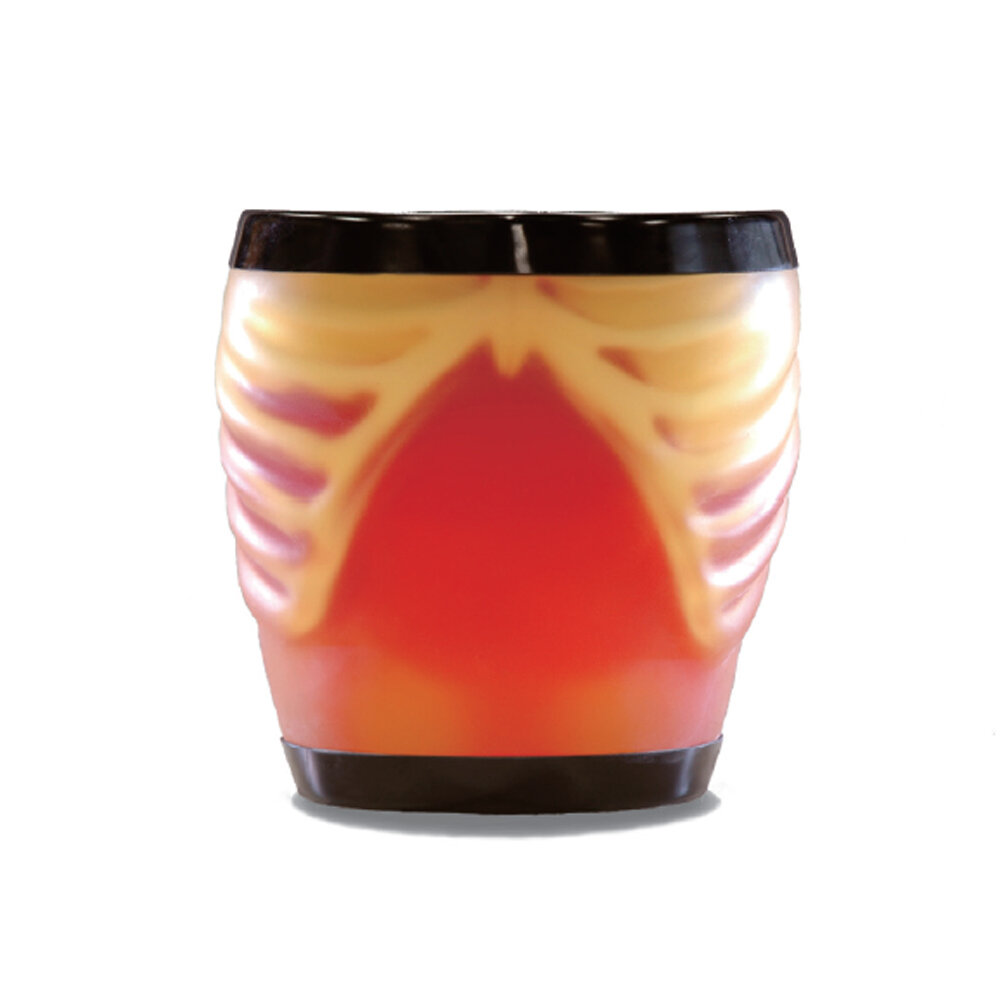

Ultrasound Examination Training Phantom"ABDFAN"
| Features | 1. Detailed hepatobiliary, pancretic and other abdominal anatomy 2. Eight Couinaud's hepatic segments can be localized 3. ABDFAN has various simulated lesions to provide wider training variety |
|---|---|
| Training skills / Applications | Basics of abdominal sonography:-Cross sections and sonographic anatomy Sonographic demonstration of each individual organ Localization of hepatic Couinaud's segments |
| Set includes | 41900-100 full set : 1 ultrasound phantom "ABDFAN" / 1 anatomical model "ECHO-ZOU" / 1 positioning pillow /１ talcum powder/ 1 tutorial manual (DVD) /1 storage case / 1 instruction manual 41900-030 : 1 ultrasound phantom "ABDFAN" / 1 positioning pillow /1 talcum powder/ 1 tutorial manual (DVD) /1 storage case / 1 instruction manual |
| Size (approx.) | W29 x D19 x H31cm / W11.4 x D7 x H12.2in |
| Packing size (approx.) | 41999-100: W72 x D44 x H39cm / W28 x D17 x H15in 41900-030: W44 x D39 x H42cm / W17.3 x D15.3 x 16.5in |
| Weight (approx.) | 12kg/26.5lbs |
| Packing weight (approx.) | 20kg / 44lbs |
| Materials | Polyurethane elastomer / Latex free |
| Related products |
US-1_Ultrasound Examination Training Phantom "ECHOZY"
MW43"AbdoAbby" Abdominal Examination Simulator US-5 FAST/Acute Abdomen Phantom "FAST/ER FAN" |
| Production ＆ Development Supervision | Junji Machi, MD,PhD Unibersity of Hawaii at Manoa and Kuakini Medical Center |
| Anatomy | Liver (segmental anatomy, portal and hepatic venous systems, ligamentu, teres and ligamentum venosum) Biliary tract (gallbladder, cystic duct, intrahepatic and extrahepatic bile ducts) Spleen / kidneys Detailed vascular structures (aorta, vena cava, celiac artery and its branches, portal bein and its branches, superior mesenteric vessels, renal vessels, and more) |

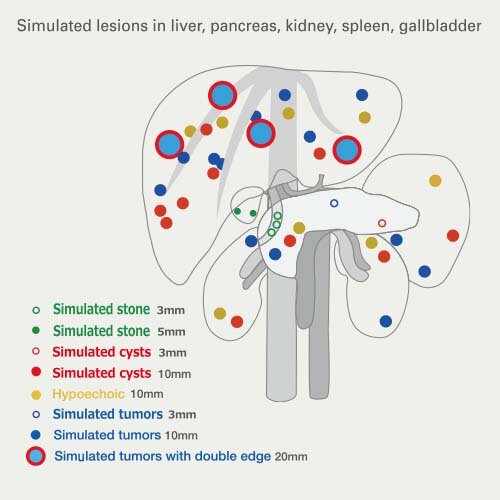

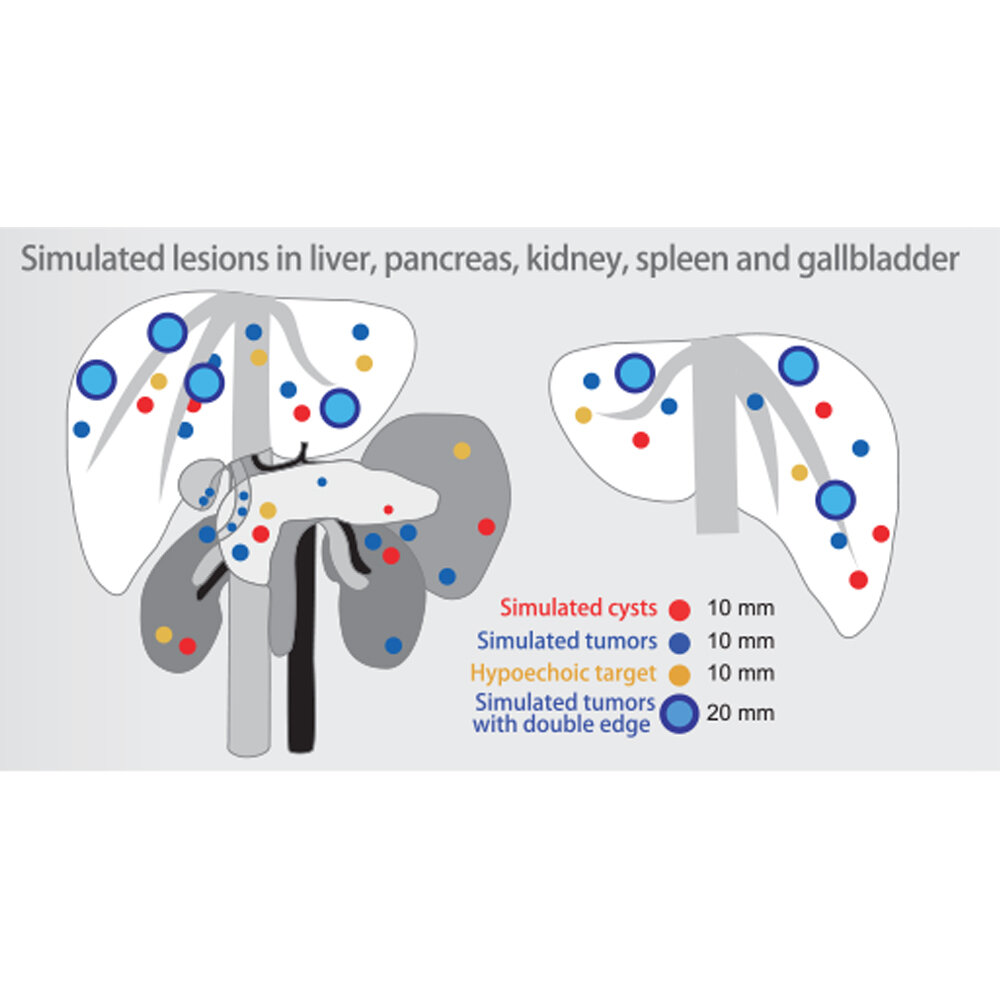

| Pathologies | Hepatic lesions (cystic and solid) / Gallbladder and bile duct stones / Pancreatic tumors (one invading the portal bein) / Splenic lesions / Both kidney lesions / Left adrenal tumor |
| Update | November 21, 2024 |
