For evaluation and research in ECG gating cardiac and thoracic CT
- PH-6C
PH-82

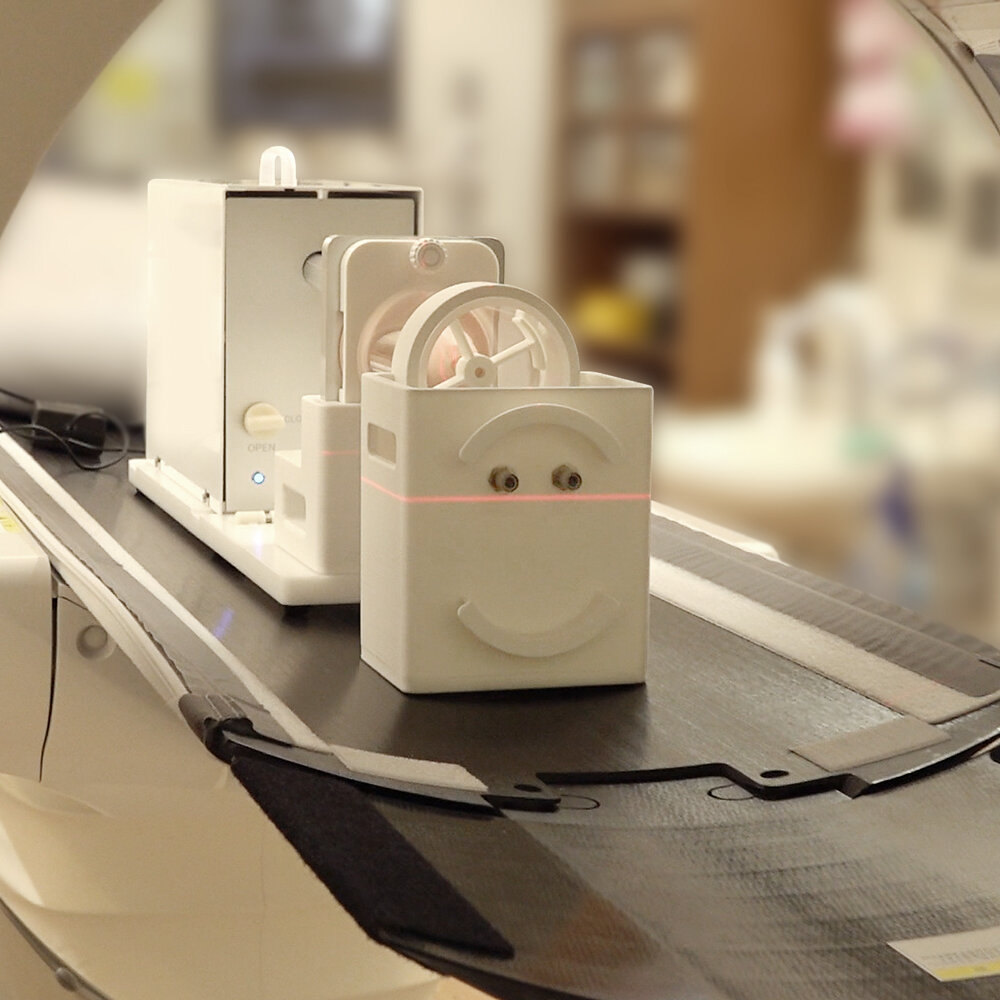

Dynamic Cardiac CT Phantom SKK II

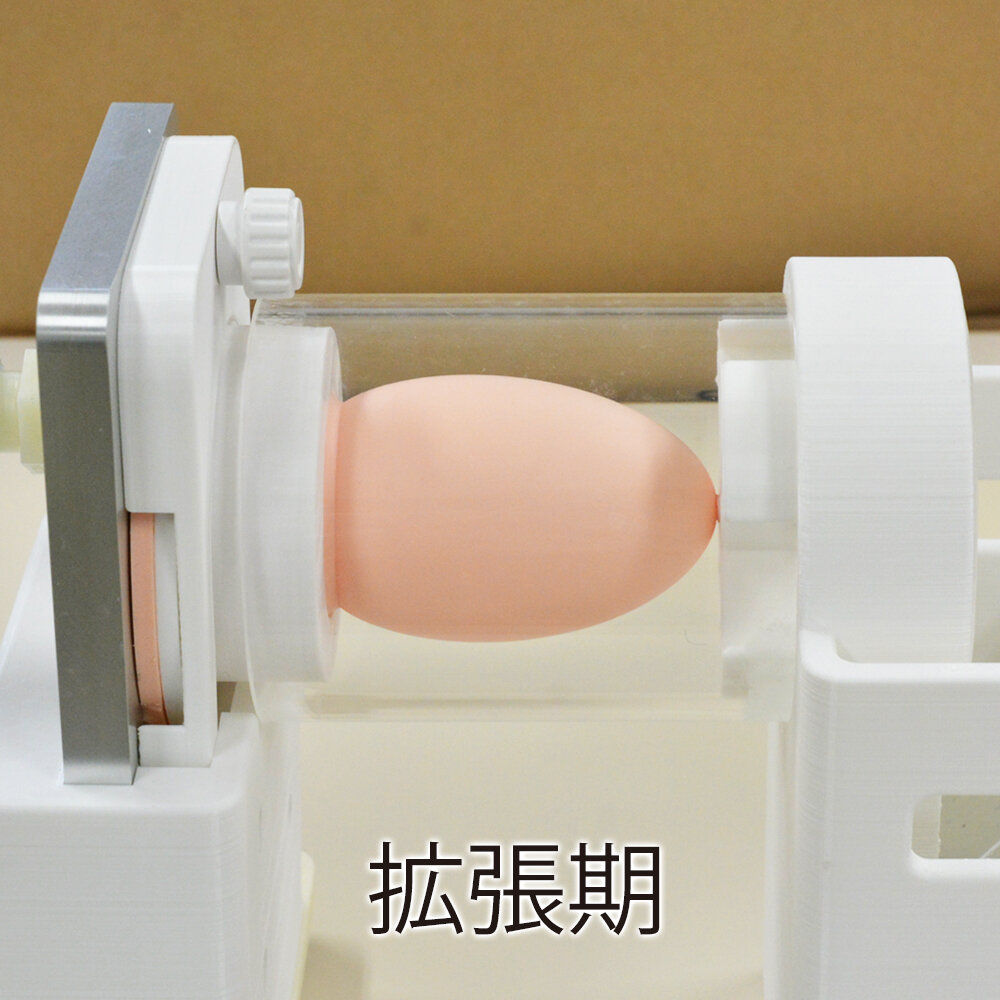

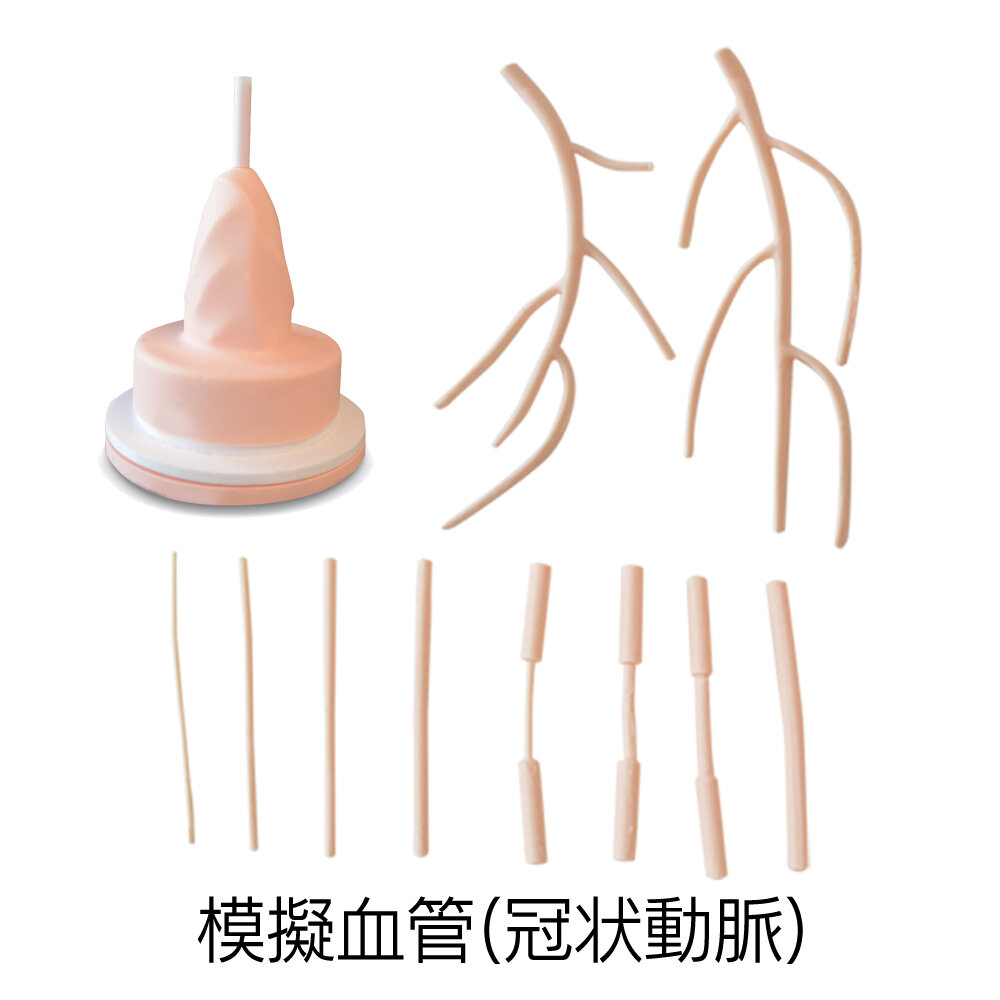

| Features | The heart phantom is made of human tissue equivalent material in CT. Various simulated arteries are included. 1) Anatomical shape of coronary artery. 2) Artery with Stenosis. 3) Contrasted artery. Easy to operate with Tablet PC . 1) Heart rate is adjustable from 30 to 120bpm. 2) Ejection volume rate is adjustable 0 to 100% . 3) 3 kinds of Arrhythmic mode |
|---|---|
| Training skills / Applications | Measurement of the left ventricle ejection volume Image quality evaluation of coronary arteries |
| Set includes | 1 drive unit / 3 heart phantoms / 1 protective cover / 1 set of simulated coronary arteries / 1 controller / 1 storage case |
| Size (approx.) | W90 x D20 x H32.5cm (assembled) |
| Weight (approx.) | 18.5kg |
| Power source | 100-240V 50/60Hz |
| Power requirements (approx.) | 225W |
| CE certified/CE Certification? | No |
| Update | December 1, 2023 |
