PH-59

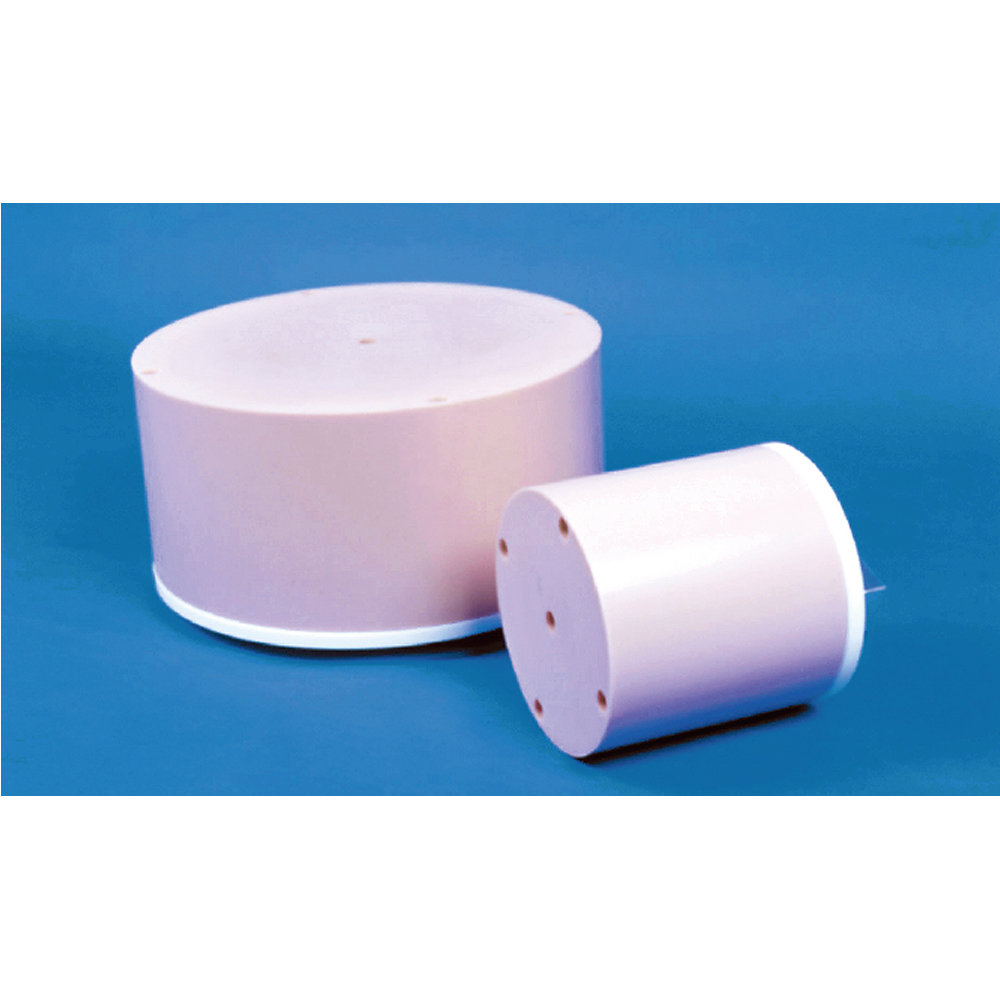

CT-DI Phantom (Head and Body Phantom)

41924-000 with storage case Quote

A set of phantoms for CTDI-100, conforming to requirements described in 21 CFR 1020.33, IEC 61223-3-5: 2004, and IEC 61223-2-6: 2006 as consistency test

Features 1. Represent adult head and body as well as pediatric body
2. This phantom can be used for initial and follow-up QA tests descrided in JIS Z 4752-3-5:2008 and JIS Z 4752-2-6:2012
Training skills / Applications Computed Tomography Dose Index (CTDI)
Dose profile

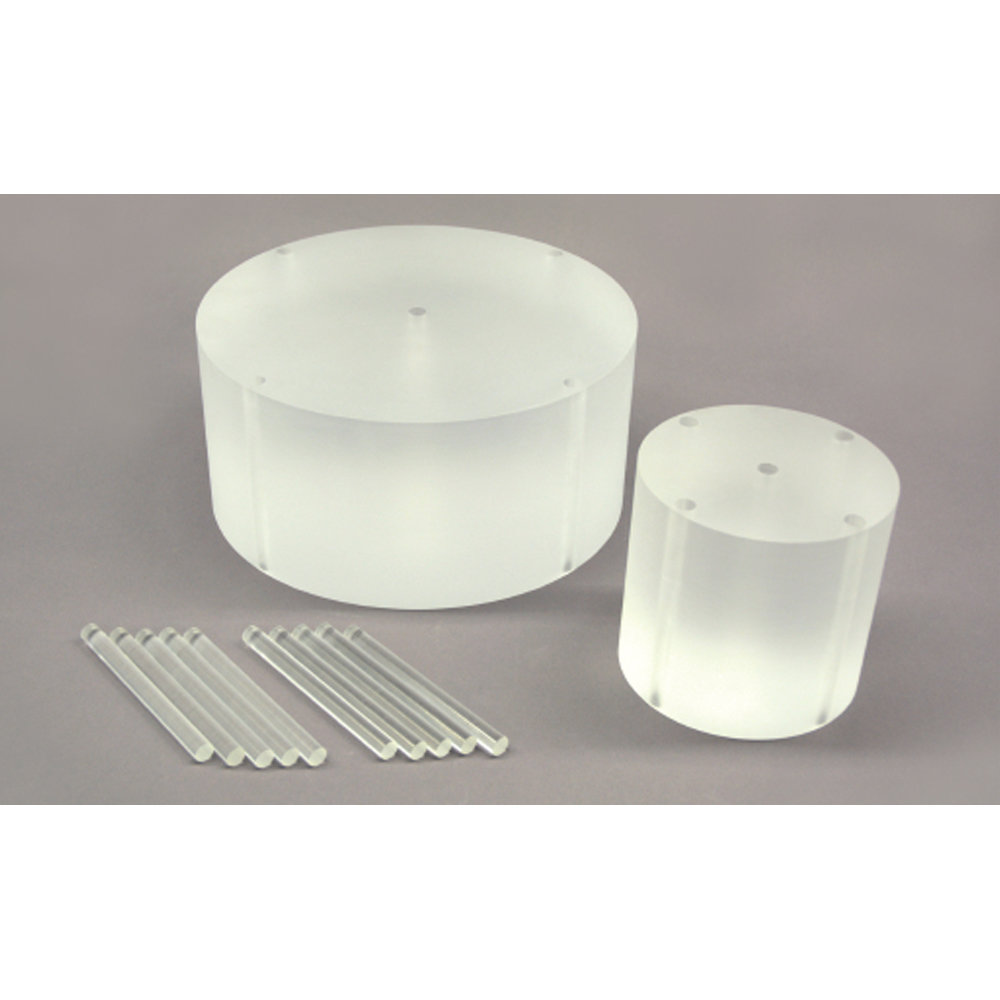

Set includes 1 head phantom / 1 body phantom / 10 filling rods / manual
Size (approx.) Body phantom: 32 dia. x 15 cm/12.6 dia. x 5.9 inch
Head phantom: 16 dia. x 15 cm/6.3 dia. x 5.8 inch
Weight (approx.) Body phantom:15kg/ 33lb Head phantom:4kg/ 8.7lb
Materials Acrylic resin
Related products PH-54 CT QA Phantom JCT II
Update August 10, 2020
