| 11403-000 | Quote |
|---|
Three dimensional representation of colon, based on analytical study of CT Colonoscopy(CTC) data
MW24

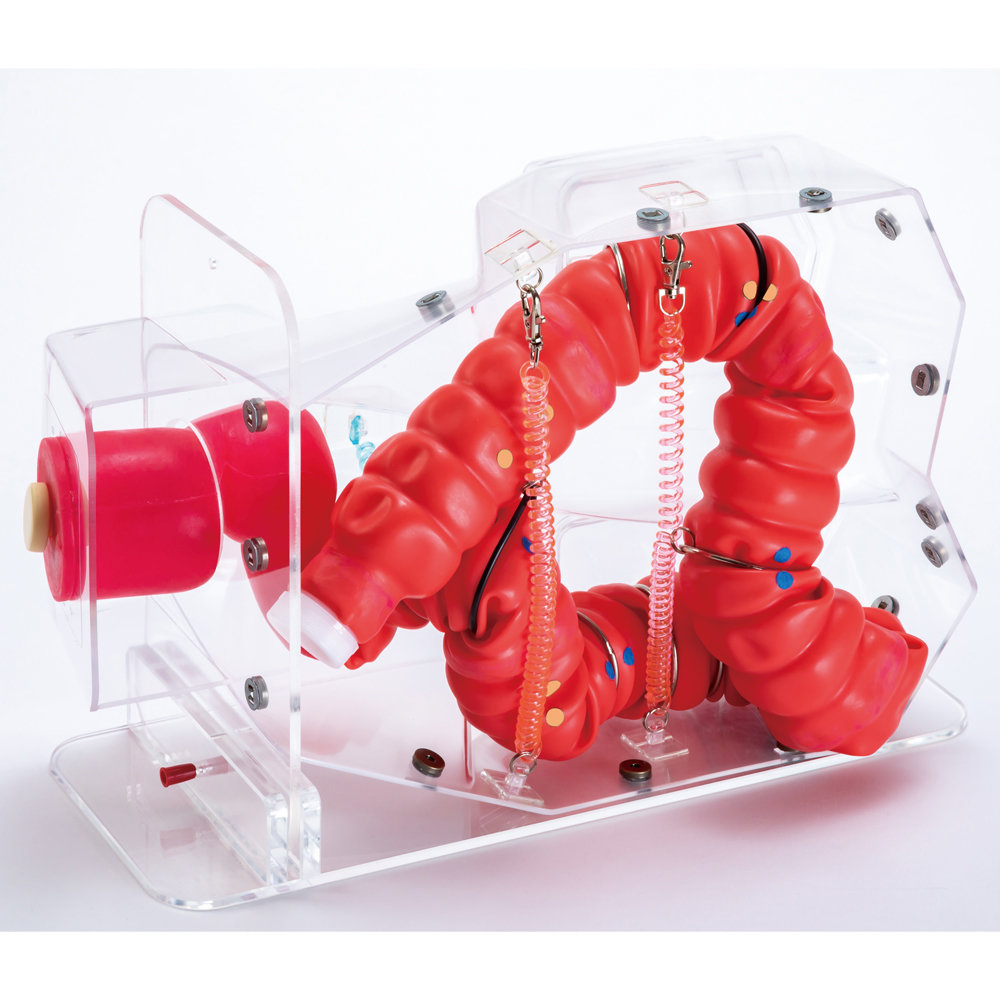

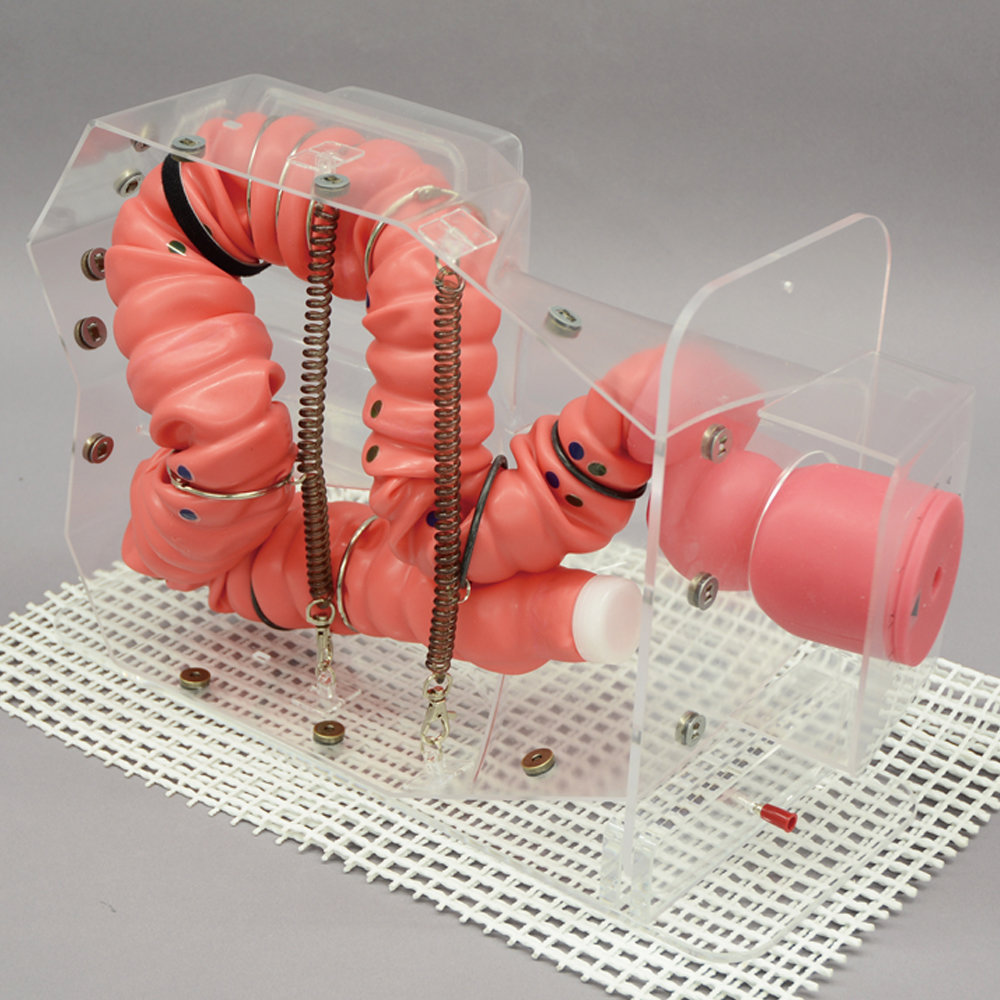

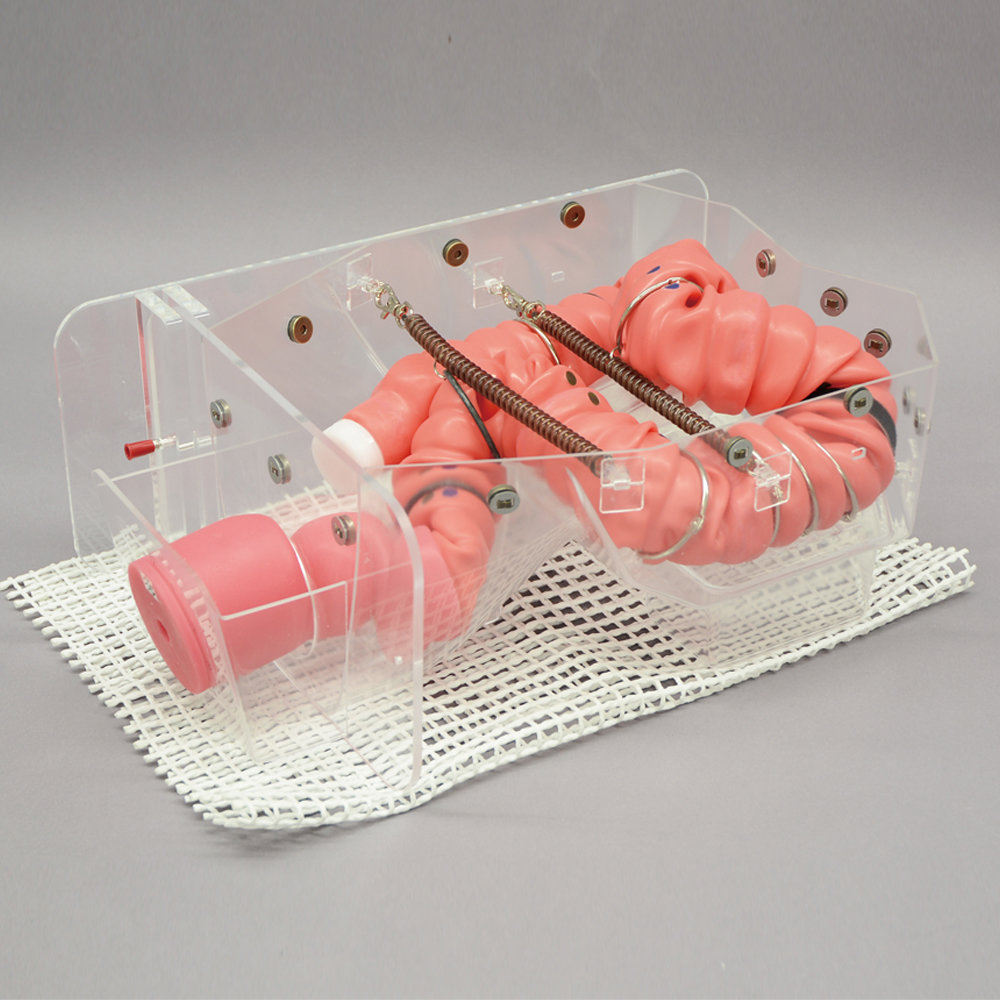

3D Colonoscope Training Simulator NKS
| Features | Transparent skeleton body allows direct observation of the position of the tip of the scope as well as form of the colon. / Stable rectal anatomy:the simulator is designed to acquire colonoscopy skills that use three Houston's valve as landmarks,which appear at the same position every time. / The sigmoid colon can be pre-set to take up any one of the three most common morpholoties, which are depribed from analysis of CTC.The parrerns can be changed quickly by sliding attachments and moving the colon tube. |
|---|---|
| Training skills / Applications | Colonoscope insertion in three fundamental patterns: -short alpha loop (pull back technique) / -Long alpha loop(push forward technique) / -N loop (pull back/push forward technique) /Colonoscope insertion in three patient positions:-Left lateral -Right lateral/-Spine / Manual abdominal compression |
| Set includes | 1 skeleton body / 1 abdominal membrane / 1 body base / colon-retum tube (with a cap and a plug) / 1 lip resistant mat / 1 plastic jar / 1 lubricant / 1 colonoscope gel / 1 storage case / 1 instruction manual |
| Size (approx.) | W43 x D28 x H16cm / W17 x D11 x H6.3in |
| Weight (approx.) | 6kg/13.2lbs |
| Materials | Soft resin, hard resin / Latex free |
| Replacement parts | 11403-010 / 11403-020 / 11403-030 |
| Production ＆ Development Supervision | Katuhisa Noda./MD, Noda-Genki Clinic / Takatoshi Kitada, MD, Kitada Clinic / Yasumoto Suzuki. MD, Matsushima Clinic |
| Publication references | Katsuhisa Noda, Takatoshi Kitada, Yasumoto Suzuki, Hugh Shunsuke Colvin, Taishi Hata4, Tsunekazu Mizushima "A novel physical colonoscopy simulator based on analysis of data from computed tomography colonography" Surg Today (2017) 47:1153_1162 DOI 10.1007/s00595-017-1517-7 |
| Recommended size of device | 9.2mm to 11.8mm (outer diameter) |
| Update | April 15, 2022 |
